- Recesses into floor to lie flush when not in use
- Forged steel, 1166 lbs. WLL
- Ring inner clearance: 1 3/8". Bolts down
| Width | 3.75 in |
| Height | 1 1/16" |
| Material | Steel |
| Finish | Galvanized |
| WLL (lb.) | 1166 |
| ABS (lb.) | 3498 |
| Mounting style | Bolt-On |
| Length | 4 in |
| Color | Silver |
| Quantity | 1 |
Trailer Flush Mount D-Ring Cargo Tie-Down Anchor

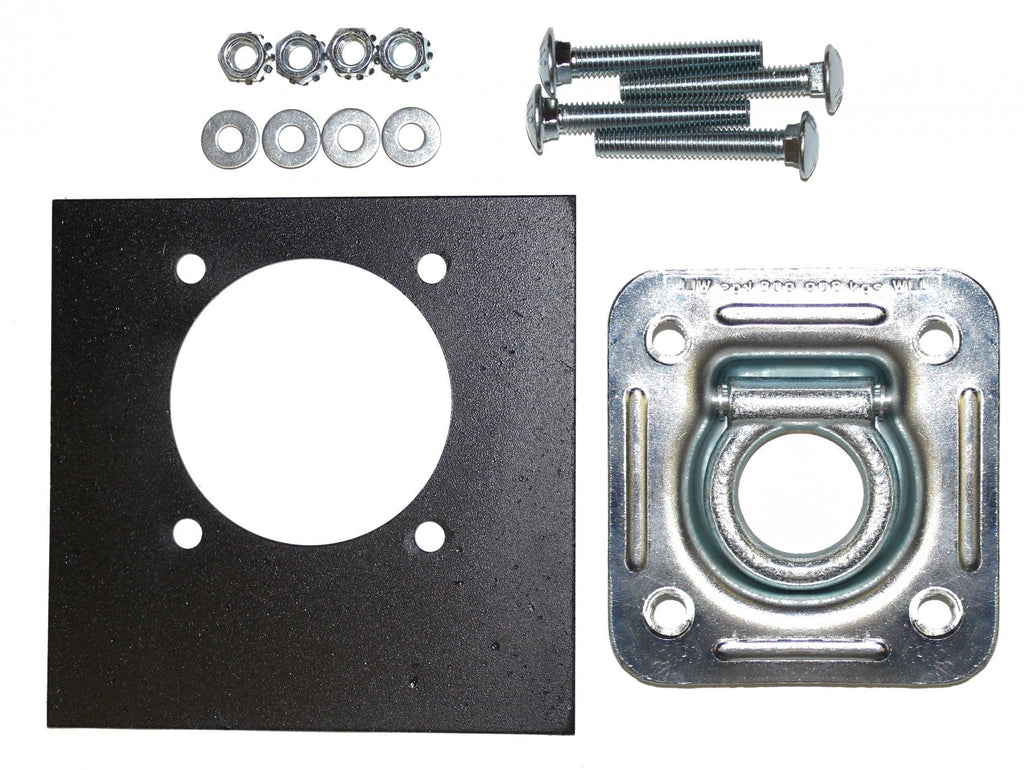

When you need a secure and convenient cargo tie-down anchor, choose this flush mount D-Ring and mounting plate installation kit. The galvanized D-Ring has a square recessed pan that gets bolted into your wooden trailer floor, keeping your surface even and avoiding the hazards of people tripping and freight snagging. The D-Ring lies flush in the pan when not in use and can be lifted upward for use as a cargo tie-down anchor.
Installing And Using The Square Recessed D-Ring Pan Fitting
Use a hole saw and chisel to cut 2-5/16" x 2-11/16" hole in your wooden floor. Because the recessed pan fitting is deeper on one side, the hole should gradually advance from 9/16" deep to 1-1/16" deep. This recessed pan fitting has four pre-drilled holes - one in each corner. They are countersunk, with the holes narrowing on bottom and widening towards the surface, ensuring that the bolts remain flush with the surface and do not rise above it. Secure each bolt with a washer and nut on the other side of the mounting surface. This kit comes with the 4 installation bolts, nuts, and washers needed.
CLICK TO SEE THE GUIDES
How To Install A Recessed D-Ring
